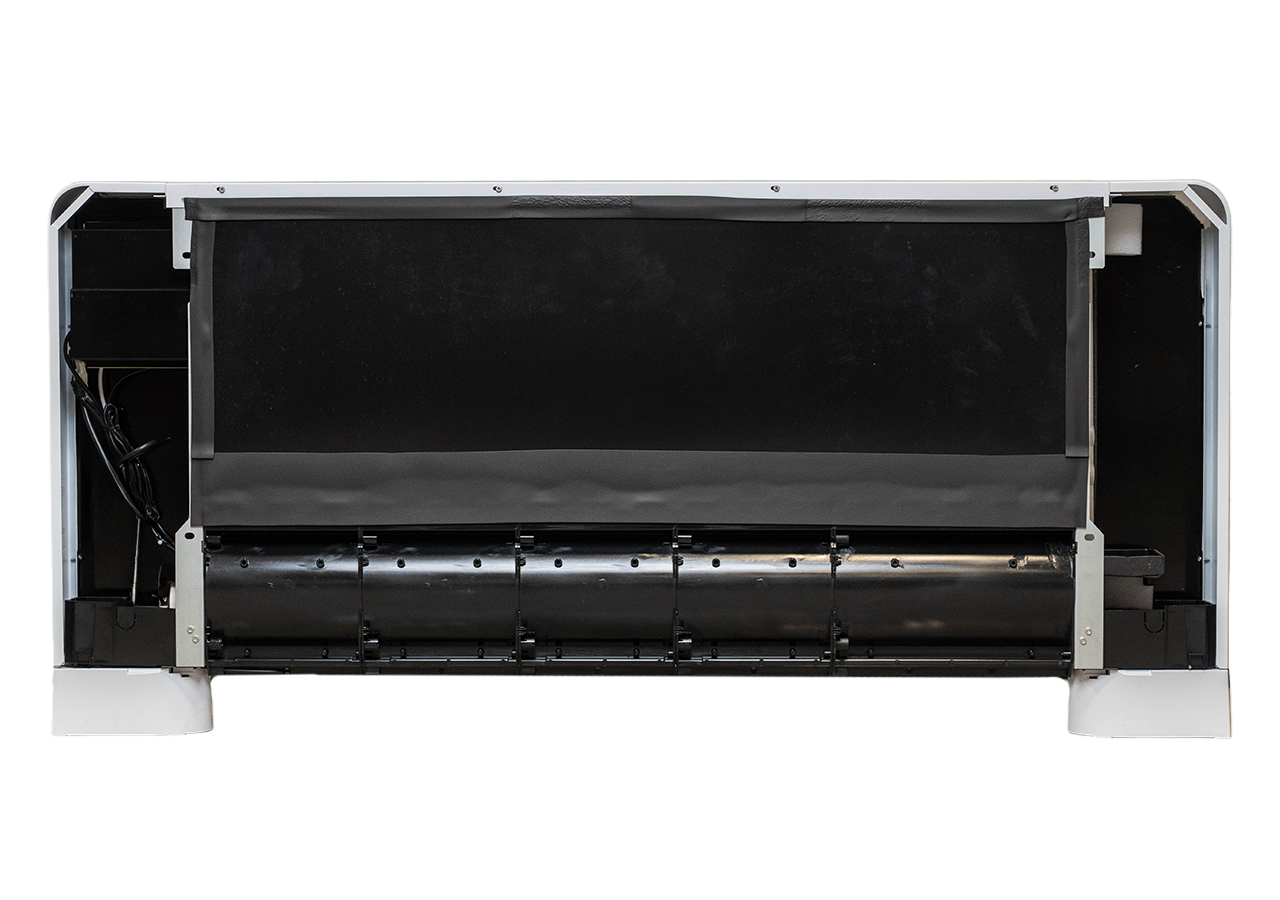

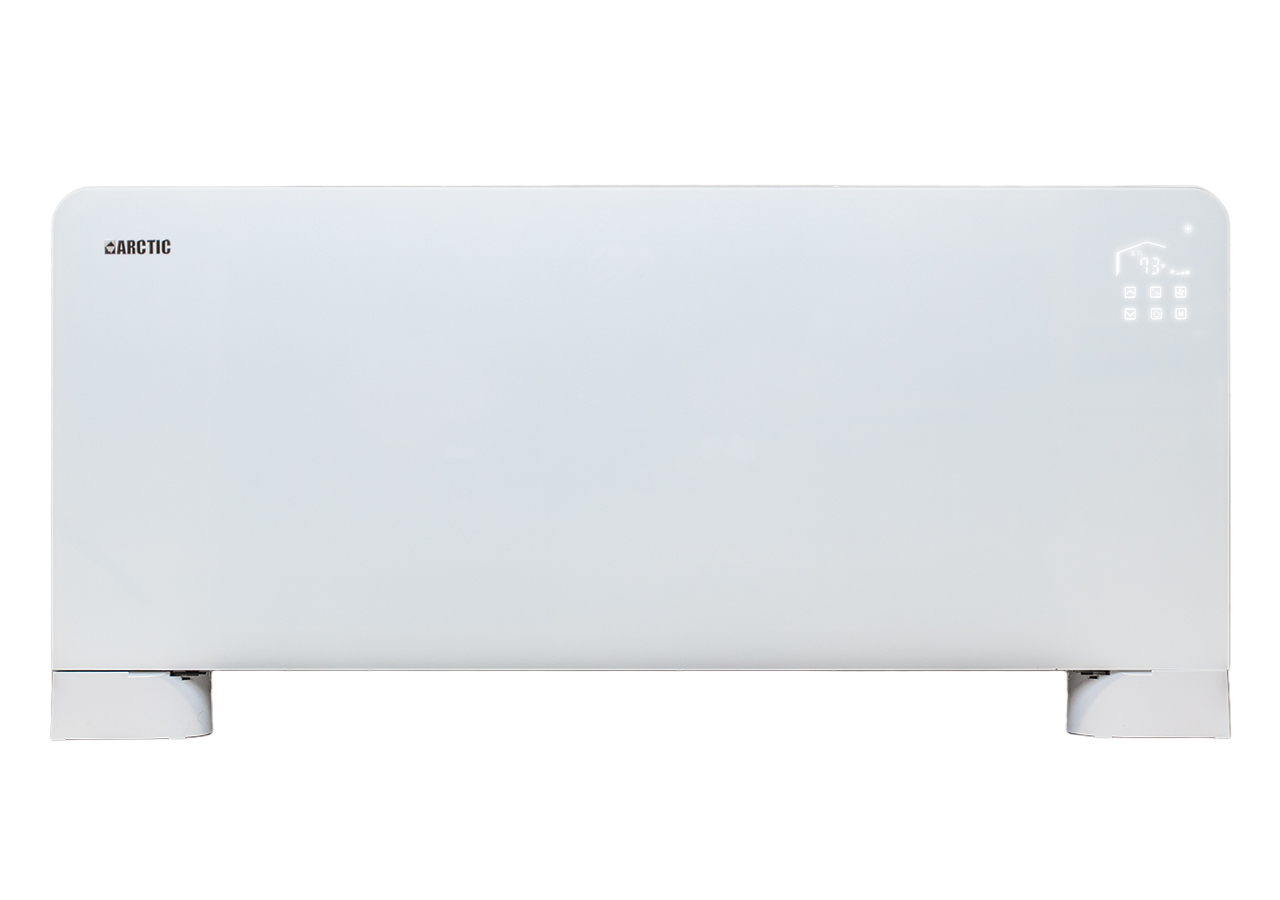

Ultra Thin Hydronic Fan Coil - Heating & Cooling - Water Radiator - 100-C
PHNIX ULTRA THIN WATER FAN COILS FOR HYDRONIC HEATING AND COOLING
Fan Coils provide a modern hydronic heating and cooling solution with superior energy efficiency. Compared with traditional radiators you can save over 30% in energy consumption. Combine that with a high energy efficient hydronic heat pump, such as an Arctic Heat Pump, and the savings are tremendous. Modern day hydronic heating means using lower supply water temperatures to capture the energy savings. The 0100-C is capable of heating with supply water temperatures as low as 110 F.
Ultra sleek and modern design allow these fan coils to be placed nearly anywhere and unlike older radiators the ultra quiet fan mixes the room air providing a much more even heat distribution. Built in condensate drain allows for summer cooling and dehumidification. Touch button control with automatic fan speed selection and auto heat/cool allow you to easily manage the comfort of any room. A convenient remote is included allowing control of the unit from anywhere in the room.
How does it work - When a heating or cooling call is needed the Fan Coil will send a dry contact signal back to a pump relay to activate the hydronic circulation pump. The pump will either supply hot water in the winter or cold chilled water in the summer to the fan coil. When using multiple fan coils it is recommend to run them in parallel using a manifold and variable speed constant pressure pump such as the Grundfos Alpha2.
Phnix Ultra Thin Fan Coils
Specifications
Model |
PFP-025-C |
PFP-040-C |
PFP-060-C |
PFP-080-C |
PFP-100-C |
|---|---|---|---|---|---|
| Heating Capacity* (Btu/h) | 3,600 | 6,900 | 9,200 | 11,800 | 14,300 |
| Heating Capacity** (Btu/h) | 4,600 | 8,500 | 11,400 | 14,600 | 17,800 |
| Heating Capacity*** (Btu/h) | 6,680 | 10,500 | 15,300 | 19,720 | 25,500 |
| Cooling Capacity* (Btu/h) | 3,400 | 6,500 | 8,500 | 12,000 | 14,800 |
| Power Supply (V/Ph/Hz) | 110 - 120 V / 1 Ph / 60Hz | ||||
| Air Volume (CFM) | 94 | 188 | 270 | 341 | 383 |
| Max. Noise (dBA) | 30 | 32 | 37 | 39 | 41 |
| Net Dimensions (H x W x D) (in) | 26 x 28 x 5 | 26 x 35 x 5 | 26 x 43 x 5 | 26 x 51 x 5 | 26 x 59 x 5 |
| Shipping Dimensions (H x W x D) (inches) | 29 x 29 x | 29 x 37 x 7 | 29 x 45 x 7 | 29 x 53 x 7 | 29 x 61 x 7 |
*Heating: Ambient temp. (DB) 70°F, Water temp. (In/Out): 113°F/ -
**Heating: Ambient temp. (DB) 70°F, Water temp. (In/Out): 122°F/ -
***Heating: Ambient temp. (DB) 70°F, Water temp. (In/Out): 140°F/ -
*Cooling: Ambient temp. (DB) 80°F/67°F, Water temp. (In/Out): 45°F/55°F
1 years manufacturer's warranty.
In keeping with our policy of continuous product improvement, arcticheatpumps reserves the right to make specification and design changes without notice.
