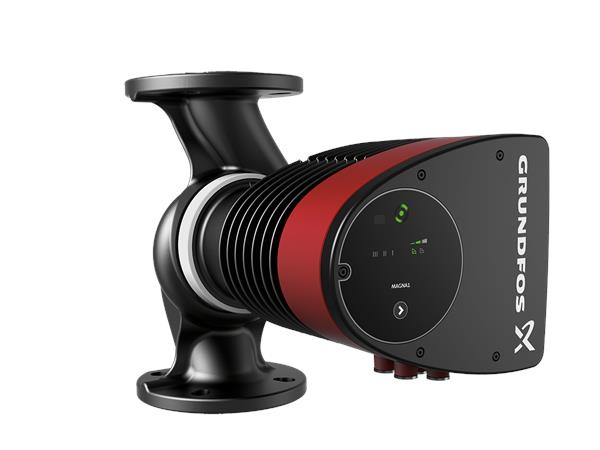

The Grundfos MAGNA1 is a circulator pump with permanent magnet motor and easy selection of pump setting. The MAGNA1 will fit both heating, cooling and domestic hot water circulation applications perfectly, making it the obvious choice for almost any building project – old or new.
The pump is a canned-rotor type, i.e. pump and motor form an integral unit without shaft seal and with only two gaskets for sealing.
The bearings are lubricated by the pumped liquid. A pump with no maintenance requirements and extremely low life cycle cost.
The pump has an intuitive user interface, which is especially fit for replacement of older circulators. The ideal choice for basic performance needs in applications where system communication is not required.
Product name: MAGNA1 32-60 F
Product No: 98126819
EAN number: 5710629499813
Head max: 60 dm
TF class: 110
Approvals on nameplate: 98544607
Model: B
Pump housing:
Cast iron
EN-GJL-250
ASTM A48-250B
Impeller: PES 30%GF
Range of ambient temperature: 0 .. 40 °C
Maximum operating pressure: 12 bar
Flange standard: GF
Pipe connection: GF15/26/40/43
Pressure rating: PN12
Port-to-port length: 165 mm
Pumped liquid: Water
Liquid temperature range: -10 .. 110 °C
Concentration: 10%
Selected liquid temperature: 60 °C
Density: 983.2 kg/m³
Power input - P1: 8.62 .. 107 W
Mains frequency: 60 Hz
Rated voltage: 1 x 115-230 V
Maximum current consumption: 0.28 .. 1.01 A
Enclosure class (IEC 34-5): X4D
Insulation class (IEC 85): F
Energy (EEI): 0.20
Net weight: 5.42 kg
Gross weight: 6.48 kg
Shipping volume: 0.01 m³
